The company's wet preparation and horizontal tube continuous cooking technology can be used for chemical and semi-hemical pulping of wood chips, bamboo chips, cotton fibers, straw raw materials, etc

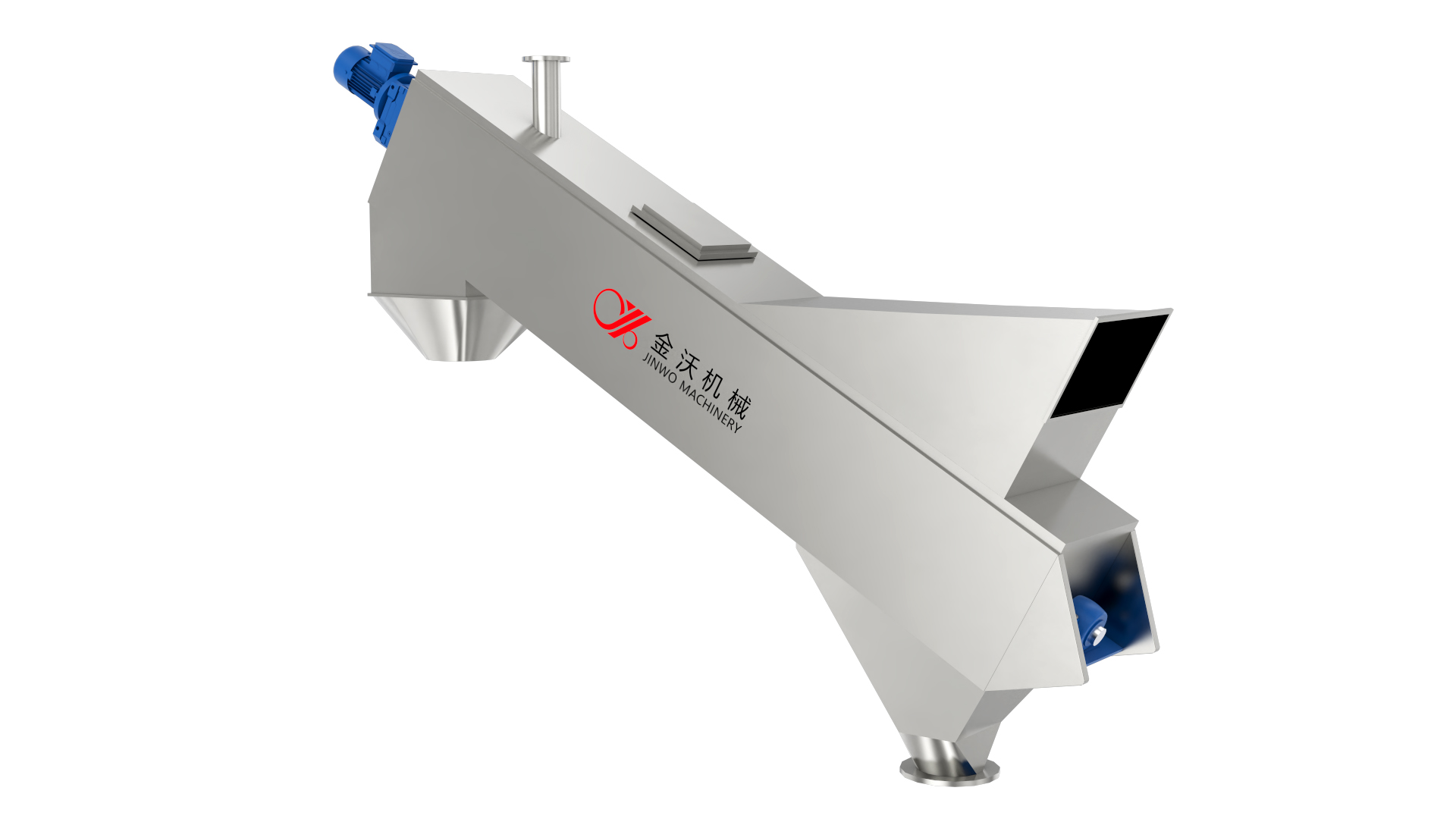

The overall structure of the Inclined screw dehydrator is inclined spiral type, with a filter screen at the lower part for filtration function. After being washed by the washing machine, the wood chips enter the Inclined screw dehydrator. During the conveying process, the wood chips are dehydrated through the screen under the action of their own gravity to reach the required dryness for the subsequent steam steaming bin process. The light-weight impurities filtered out are discharged through the overflow port to the inclined sieve, while the heavy-weight impurities are regularly discharged by the discharge valve at the bottom of the machine. The screen is rinsed by the washing screen device.
Product specifications and technical parameters
Product model | XLX65 | XLX150 | XLX300 |
Screw diameter D(mm) | 700 | 720 | |
Screw rotation speed (r.p.m) | 50 | 75 | 80 |
Motor power (Kw) | 7.5 | 11 | 22 |
Production capacity (t/d) | 65 | 150 | 300 |
Feed dryness (%) | 5-6 | ||
Discharge dryness (%) | 35 | ||
