The company's wet preparation and horizontal tube continuous cooking technology can be used for chemical and semi-hemical pulping of wood chips, bamboo chips, cotton fibers, straw raw materials, etc

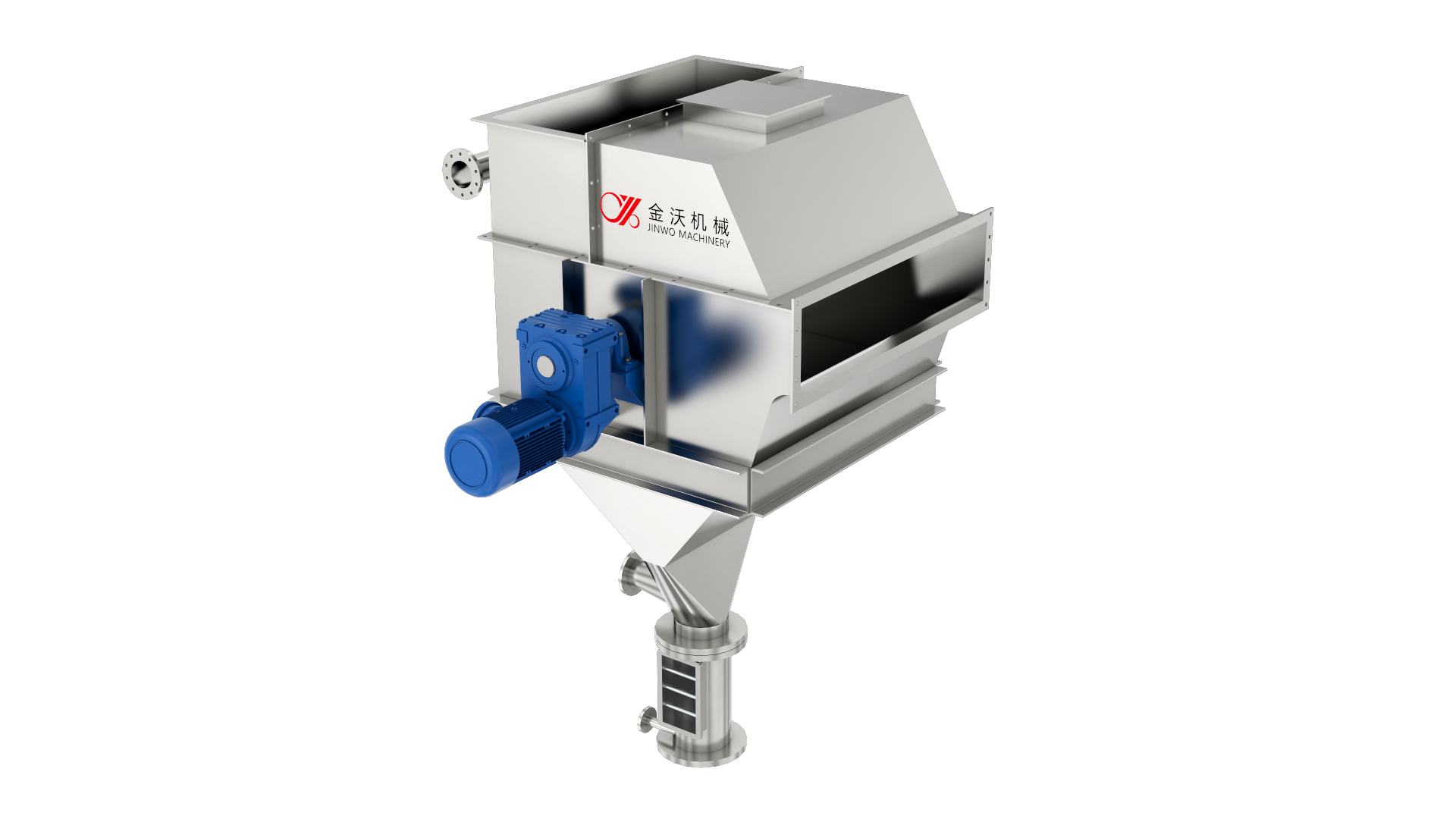

Wood chips are conveyed by a belt conveyor into the drum washing machine, where it is loosened, absorbs water, and separates heavy impurities in the water under the action of the rotating drum. Heavy impurities fall to the bottom of the drum washing machine, settle, and enter the debris collector. The debris collector consists of two pneumatic gate valves and a debris collection pipe. During operation, the bottom valve remains closed while the upper valve is open. When discharging impurities, the upper valve closes, and the bottom valve opens.
Specifications and technical parameters
Model | XP65 | XP150 | XP300 |
Drum diameter(mm) | 1500 | ||
Drum speed（r.p.m) | 15-20 | ||
Power（kw) | 7.5 | 11 | 22 |
Capacity（t/d) | 65 | 150 | 300 |
Input dryness（%） | 60 | ||
Output dryness（%） | 5-7 | ||
